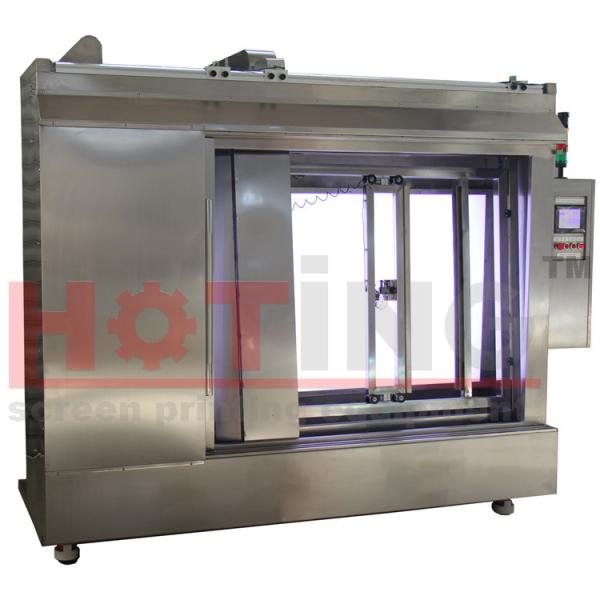

Screen developing unit

Place of Origin : Shanghai

Brand Name : Hoting

Certification : ISO9001:2008

Model Number : WAU-1000

Packaging Details : Standard export wooden box

Delivery Time : 20days

Payment Terms : T/T, L/C, Western Union, Money Gram

Supply Ability : 100sets/year

MOQ : 1set

Contact Now

Automatic screen washing and developing machine: This machine can not only wash screens, but also can develop after washing. All the machine use 304 stainless steel.

Application Scope:

It suitable for stencil developing process. Full automatic developing, degreasing and decoating functions replace man-power.

Features:

1.Water-supply system is mainly composing by high speed pump and Japan's top band spray-shaped nozzle. The spurting-pressure can be adjusted from 3 to 6kg.

2.In compliance environment friendly rule, the series equip a special water-circulation system.

3.Air-dry system's working speed is 6m3/m.

4.Multiple parameters setting up(1-20), it enables to satisfy different plates developing.

5.Simple handling through the touch screen terminal.

6.Closed construction made of the stainless steel prevents the corrosion.

7.UHP nozzle head ensures the perfect cleaning quality.

8.Perfect surface guarantee an optimal bonding between the mesh and the frame.

9. All construction material use 304 stainless steel.

Parameters:

Model	SW-1100AU
Max. Screen Size	1100×1100mm
Max. Air Pressure	36Kpa
Light Source	Yellow & White
Water Spray Mode	Parallel & Cross
In fall Diameter	22.5mm
Outfall Diameter	30mm
Net Weight	530kg
Power supply	380V 3PH 3.8KW
Dimension (W×L×H)	1700×1200×2300mm
Packing size	1900×1400×2500mm

Can be made for customized screen size.
